- TYPICAL ALL WELD ANALYSIS (%)
- C: 0.10 max
- Mn: 1.40 max
- Si: 0.60 max
- S: 0.015 max
- P: 0.018 max
Other Products
_coding:_e_7018-1__is_814_–_eb_5629h3jx_-_size-2_5mm_3_15mm_4_00mm_5_00mm_158.png "WELDING ELECTRODE WELDFAST LH 18 (NACE) CODING: E 7018-1, IS 814 – EB 5629H3JX - SIZE-2.5MM/3.15MM/4.00MM/5.00MM")

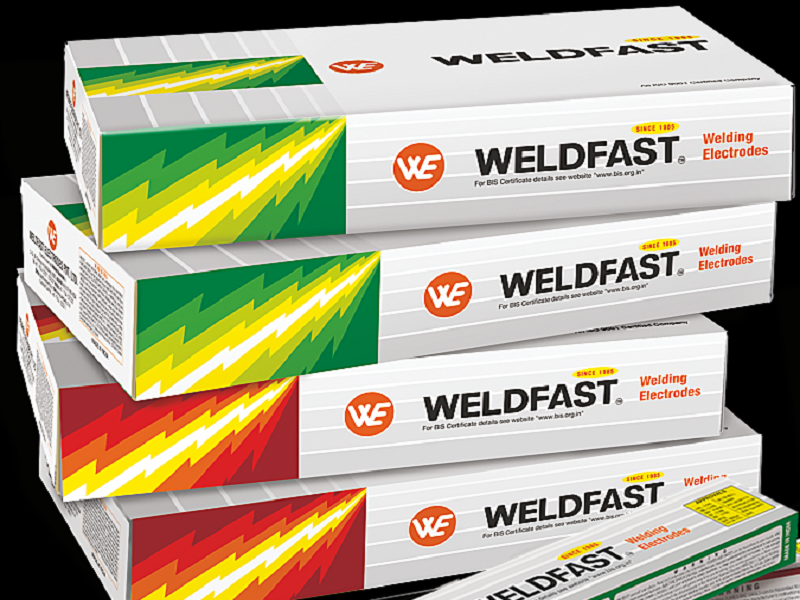

WELDING ELECTRODE WELDFAST LH 18 (NACE) CODING: E 7018-1, IS 814 – EB 5629H3JX - SIZE-2.5MM/3.15MM/4.00MM/5.00MM
A basic coated extra- low- hydrogen all position welding electrode with deposition efficiency of approximately 110%. The weld metal has excellent toughness even at -50°C and satisfies X-ray, ultrasonic and radiographic requirements. Electrode gives smooth and stable arc, with easy slag removal even from the first pass in a vee groove. The weld metal which contains about 1.2 % Mn, is extremely resistant to cold and hot cracking and tri-axial stressing. Suitable for welding of medium-high tensile
| MECHANICAL PROPERTIES | UTS (N/mm2): 520-600 YS (N/mm2): 430-530 Elongation%: 24-28 Impact Value-CVN: 40 J at -46°C |
