- TYPICAL ALL WELD ANALYSIS (%)
- C: 0.10 max
- Mn: 0.60 max
- Si: 0.40 max
- S: 0.03 max
- P: 0.03 max
Other Products

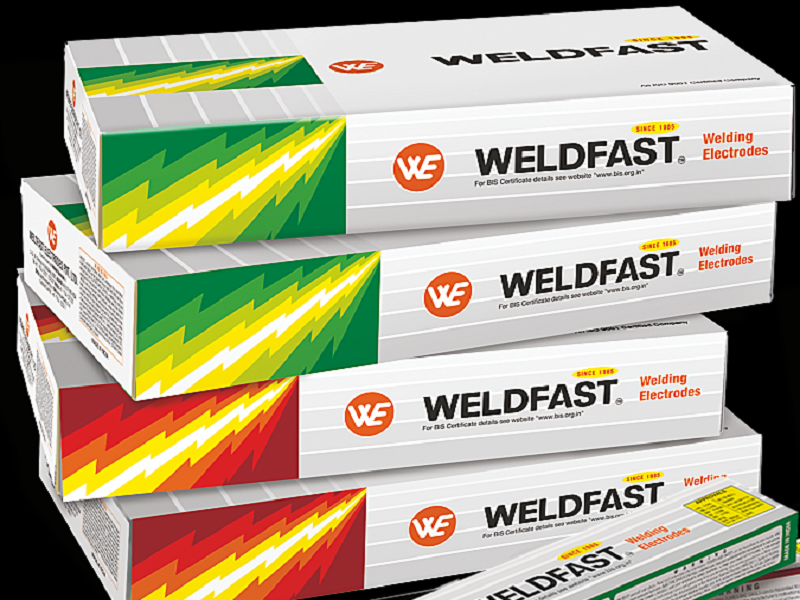

WELDING ROD WELDFAST SUPER CODING: E 6013I S 814-ER 4211X- SIZE-2.5MM/3.15MM/4.0MM/5.00MM
A medium coated rutile electrode suitable for all position welding of Steel structures and tanks, truck frames and bodies, machinery construction, auto body frames, railway wagons, ships, pipelines, bridges etc.
| Approvals | BHEL Trichy, NTPC, LRS Gr 1, ABS Gr 1, DNV Gr 1, IRS Gr 1, BV Gr 1, BIS, IBR (CIB-Maharashtra), M.N. Dastur, MahaGenco. |
| MECHANICAL PROPERTIES | UTS (N/mm2): 480-530 YS (N/mm2): 380-490 Elongation%: 22-26 Impact Value-CVN: 55-60J at 0°C |
